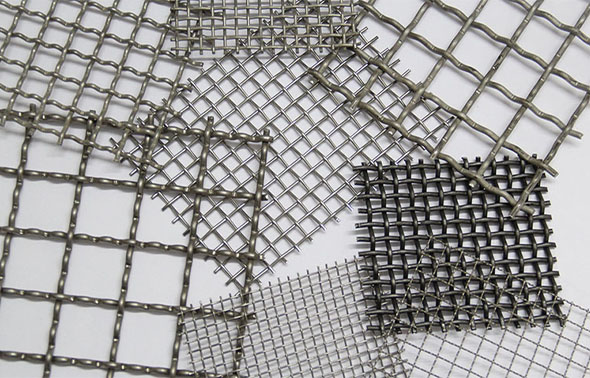

Woven wire mesh, also known as woven wire cloth, is produced by interlacing metal wires in precise patterns for filtration, screening, separation, fencing, and architectural applications.
As one of the experienced woven crimped wire mesh manufacturers, YangZhe Metal supplies custom woven wire mesh in 304/316 stainless steel, galvanized steel, brass, copper, and other confirmed materials. Mesh opening, wire diameter, weave type, roll width, sheet size, and edge treatment can be customized.
As a professional woven wire mesh supplier, we support samples, bulk orders, export packaging, and global delivery. Send us your specifications to receive a suitable woven wire mesh price and learn more about our wire mesh wholesale service.
| Product | Main Characteristics | Typical Applications |

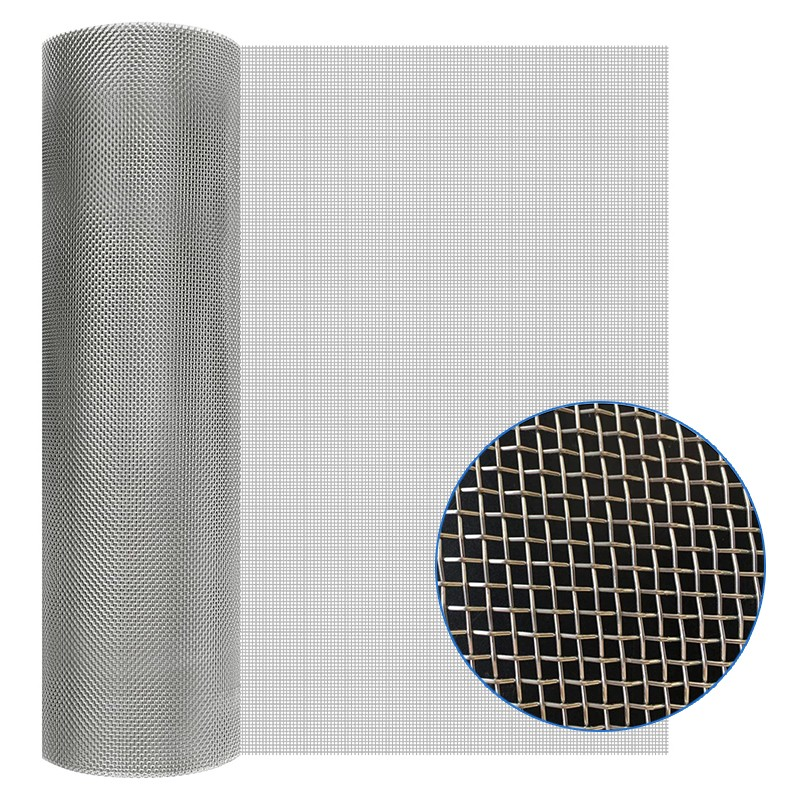

| Stainless Steel Woven Mesh | Uniform openings and corrosion resistance | Filtration, screening and separation |
| Woven Crimped Wire Mesh | Stable larger openings and stronger wire construction | Mining, aggregate screening and industrial guards |

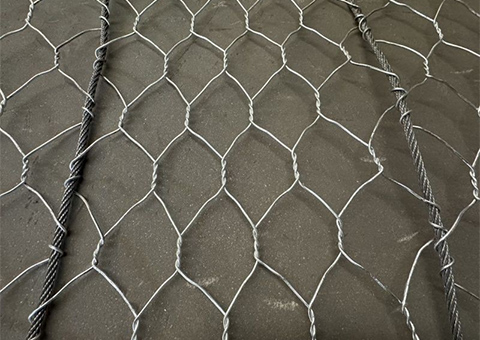

| Slope Protection Mesh | Flexible mesh structure for stabilizing slopes | Roads, railways and rockfall protection |

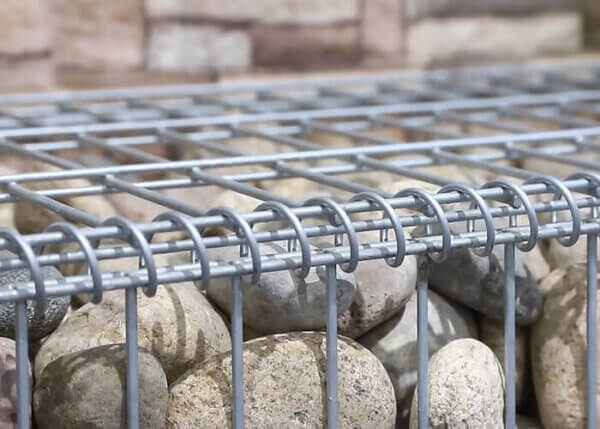

| Gabion Mesh | Wire mesh containers designed to hold stone fill | Retaining walls, erosion control and landscaping |
| Epoxy Resin Filter Screen | Coated mesh designed for filter manufacturing | Hydraulic, air and industrial filtration |
Woven wire mesh is available in different materials, wire diameters, mesh openings, and weave patterns, making it suitable for a wide range of industrial and architectural applications.
Uniform openings allow woven wire mesh screens to filter liquids, air, powders, and solid particles. They are commonly used in industrial filtration, sieving, grading, and particle separation.
Crimped woven wire mesh can be used in vibrating screens to classify stone, sand, gravel, minerals, and other bulk materials according to particle size.
Heavier-gauge steel woven wire mesh is suitable for machine guards, protective screens, equipment enclosures, storage partitions, and restricted industrial areas.
Woven wire mesh rolls and sheets can be used for livestock fencing, crop protection, animal enclosures, and general agricultural separation.
Decorative woven wire mesh is used for partitions, ceilings, facades, balustrades, wall panels, and other interior or exterior design elements.
Our custom woven wire mesh can be produced according to the required material, wire diameter, aperture, weave type, width, length, and edge treatment.
As a professional woven wire mesh manufacturer, Yangzhe supplies woven wire cloth for filtration, screening, protection, separation, and decorative applications.
Controlled wire spacing provides consistent apertures for applications requiring reliable filtration, screening, or particle classification.
Available materials include stainless steel, galvanized steel, carbon steel, brass, copper, and other confirmed alloys selected according to corrosion resistance, strength, conductivity, or appearance requirements.
Plain weave, twill weave, crimped weave, and other structures can be selected according to the required opening, flexibility, and application.
Products can be supplied as woven wire mesh rolls, sheets, screens, cut pieces, discs, or fabricated components.
At our woven wire mesh factory, wire diameter, mesh opening, width, length, weave consistency, surface condition, and packaging can be checked according to the confirmed order specifications.
Woven wire mesh and knitted mesh are both made from metal wire, but their structures and performance characteristics are different.
| Comparison | Woven Wire Mesh | Knitted Mesh |
| Construction | Warp and weft wires are interlaced in a fixed pattern | Continuous wire is formed into interconnected loops |
| Opening Consistency | Provides relatively uniform and controlled apertures | Openings are more flexible and variable |
| Shape Stability | Maintains a flatter and more stable structure | Compressible, stretchable, and suitable for curved surfaces |
| Typical Forms | Rolls, sheets, screens, discs, and panels | Rolls, sleeves, pads, filters, and compressed components |
| Common Applications | Filtration, screening, separation, guards, fencing, and decoration | Demisting, sealing, cushioning, vibration control, and gas-liquid separation |
Choose woven wire mesh when the application requires controlled openings, stable dimensions, and repeatable screening or filtration performance. Knitted mesh is more suitable when flexibility, compression, or conformity to irregular shapes is required.
As a woven wire mesh supplier, Yangzhe can recommend a suitable material, wire diameter, weave pattern, and mesh opening according to your application and operating environment.
We supply woven wire mesh in 304 and 316 stainless steel, galvanized steel, carbon steel, brass, copper, and other confirmed materials. The right material depends on corrosion resistance, strength, conductivity, appearance, temperature, and application requirements.
Please provide the material, mesh count, opening size, wire diameter, weave type, roll or sheet dimensions, quantity, and edge treatment. For custom woven wire mesh, drawings, samples, or application details can help us recommend a more suitable specification.
Yes. Because the wires are interlaced rather than welded, cut edges may loosen or fray. Depending on the application, the mesh can be supplied with selvage edges, folded edges, frames, or other edge treatments to improve stability.
Yes. As a woven wire mesh supplier, Yangzhe can provide rolls, sheets, cut pieces, screens, discs, and selected fabricated components. Width, length, dimensions, packaging, and edge treatment can be customized according to order requirements.
Send the required material, mesh count or aperture, wire diameter, weave type, dimensions, quantity, and destination. Our woven wire mesh factory will review the specification and provide a quotation based on production and packaging requirements.
