The gabion mesh produced by Yangzhe Company is made of low-carbon steel wire with high corrosion resistance, high tensile strength and ductility. It is woven into a hexagonal mesh with a honeycomb-like mesh by machine. The mesh is cut, folded, and other processes to make a box-shaped mesh cage. After filling it with stones, it is called a gabion mesh box. After the gabion mesh is applied to the protection of the embankment slope, under the dual effects of human and natural factors, the gaps between the stones are constantly filled with soil. The gaps between the stones are conducive to the growth of plant roots. The roots firmly fix the stones and soil, which is conducive to the reproduction of microorganisms and can effectively protect soil and water loss. Therefore, it is a real ecological and environmentally friendly product of the gabion mesh. In this way, the purpose of slope protection and greening can be achieved, and the effect of improving ecology and maintaining water and soil is also very significant.

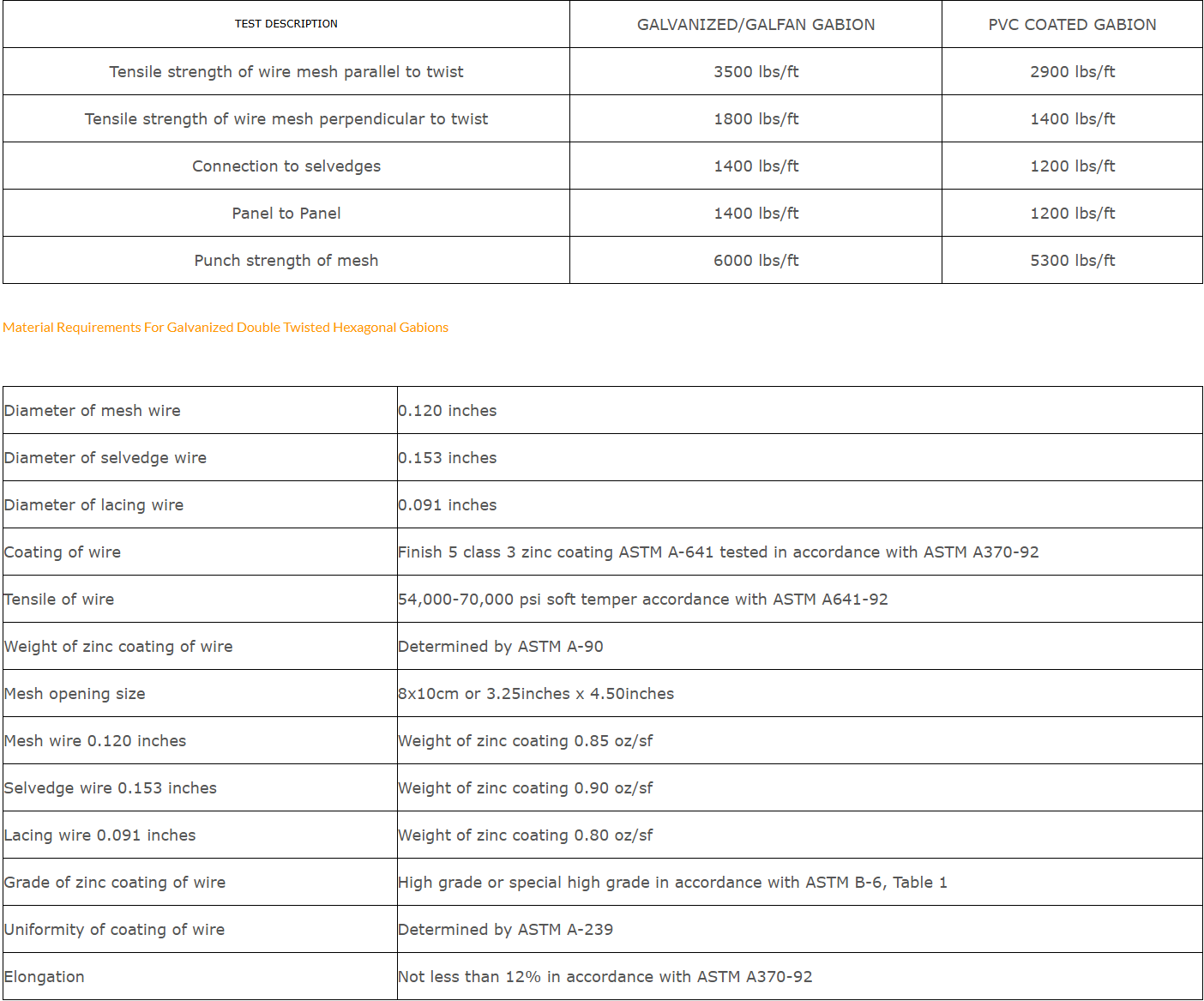

The diameter of the low-carbon steel wire used in the gabion mesh is determined according to the engineering design requirements, and the general diameter is between 2.0-4.0mm. According to ASTM and EN standards, the tensile strength of the gabion mesh steel wire is not less than 38kg/m2, and the weight of the metal coating is generally between 50g/m2g and 245g/m2. The edge wire diameter of the gabion mesh is generally larger than the mesh wire diameter. The length of the double-wire twisted part shall not be less than 50mm. To ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.
1. Simple construction. The ecological gabion mesh box process only needs to put the stones into the cage and seal it. No special technology or water and electricity are required.
2. Low cost. The cost of ecological gabion mesh box is only a few yuan to more than 10 yuan per square meter.
3. Good landscape and protection effects. The combination of engineering measures and plant measures adopted by the ecological gabion mesh box process can effectively prevent soil erosion, and the landscape effect is fast, and the landscape effect is more natural and richer.
4. Long service life. The ecological gabion mesh box has a service life of up to several decades and generally does not require maintenance.
Gabion mesh can be used for slope support, foundation pit support, mountain rock surface hanging mesh shotcrete gabion mesh box, slope vegetation (greening), railway and highway isolation and protection fences, and aquaculture protection fences. It can also be made into cages and mesh mats for anti-scouring protection of rivers, dams and seawalls, and mesh boxes for reservoirs and river interception. The most serious disaster of rivers is the scouring of river banks by water flow, which causes floods and leads to heavy losses of life and property and a large amount of soil and water loss. Therefore, when dealing with the above problems, the application of the ecological grid structure becomes one of the best solutions, which can permanently protect the riverbed and riverbank.
1. The flexible structure can adapt to the changes of the slope without being destroyed, and has better safety and stability than the rigid structure;
2. It has strong anti-scouring ability and can withstand a maximum water flow speed of 6m/s;
3. The structure is essentially permeable and has a strong tolerance for the natural action and filtration of groundwater. The suspended matter and silt in the water can be settled in the cracks of the stone filling, which is conducive to the growth of natural plants and gradually restores the original ecological environment.

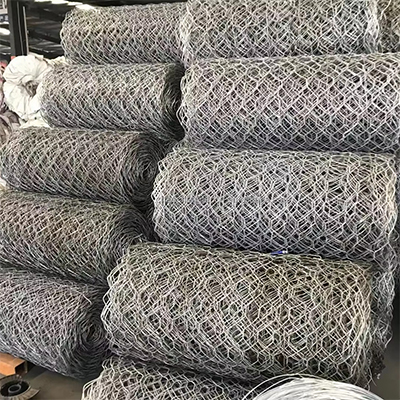

Gabion Cage Stock Gabion Mesh

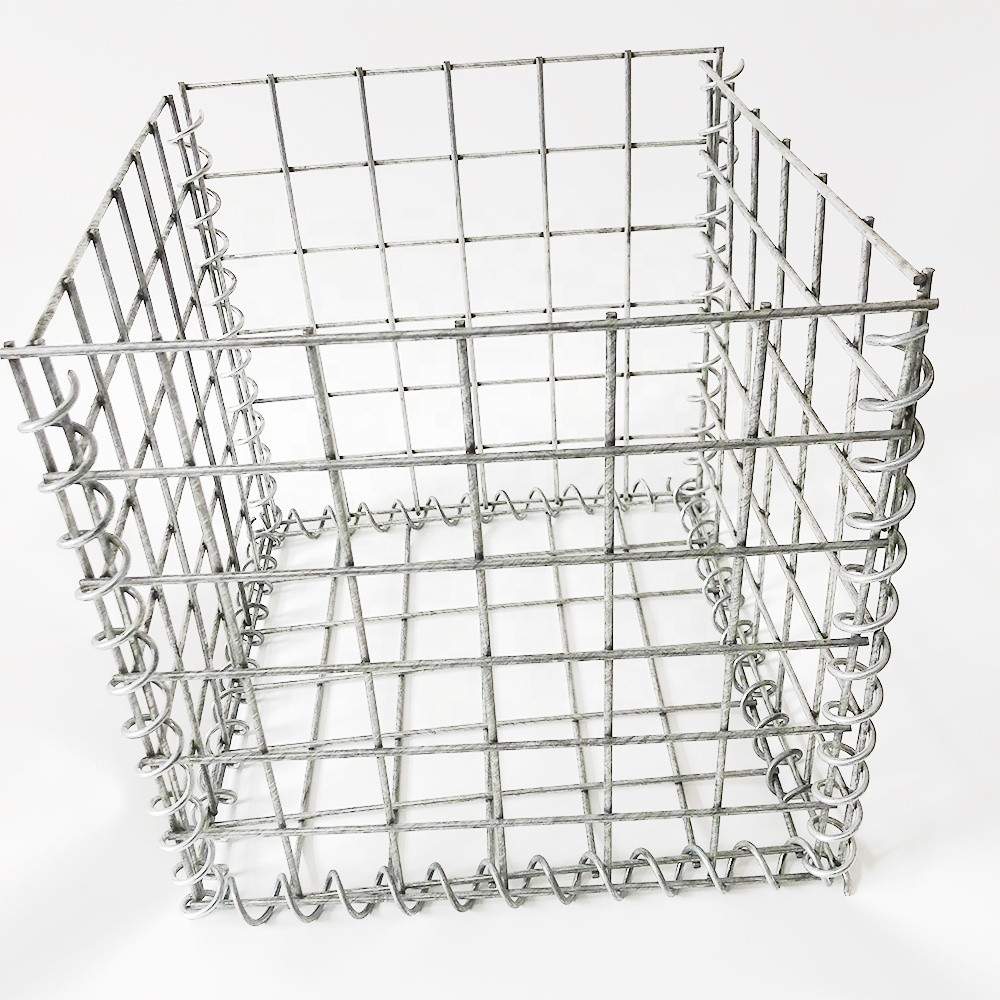

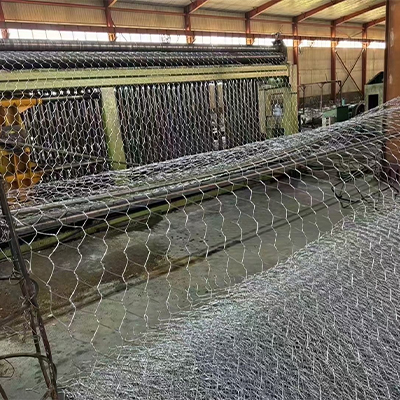

Gabion Cage Gabion Production
