Industrial-grade epoxy mesh is mainly used as a supporting layer for hydraulic or air filters and is an important part of the filtration system. Civil epoxy mesh is mainly used as a safety barrier for high-end apartments and office buildings. It is an electrostatic spraying process that adheres special epoxy powder to the surface of a mesh woven from different types of metal wires. Then, as time and temperature change, the epoxy powder melts and covers the surface of the mesh to form a dense protective layer. Common base meshes include stainless steel mesh, aluminum mesh, and low-carbon steel mesh. Epoxy powder is divided into indoor and outdoor types. Products can also be customized according to customer requirements.
1. Oil immersion corrosion resistance: It can pass the detection of hydraulic oil media of various brands in various countries around the world at different temperatures and times, and the coating surface does not change. It is suitable for high temperature and high pressure special hydraulic filter products.
2. Corrosion resistance: According to the ASTM B117-09 salt spray test standard, the coating surface has no change after continuous testing for 96 hours, which is suitable for air filters in harsh environments;
3. Strong adhesion: It can pass the H-level pencil test, 1kg/50cm impact test, scratch test, and fatigue test;
4. Strong bending resistance: It can be bent with a steel bar with a curvature radius of 1mm, and there is no crack on the surface;
5. After the product is cut and sliced, the edge wire does not fall off, and the adhesion of the coating interweaving point can reach 0.7kg

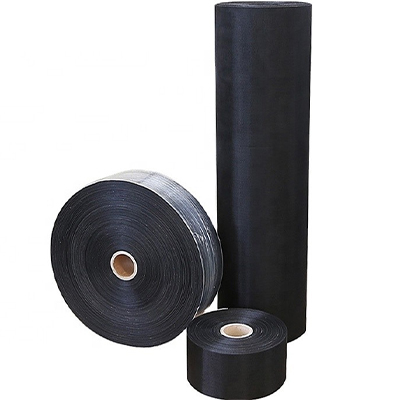

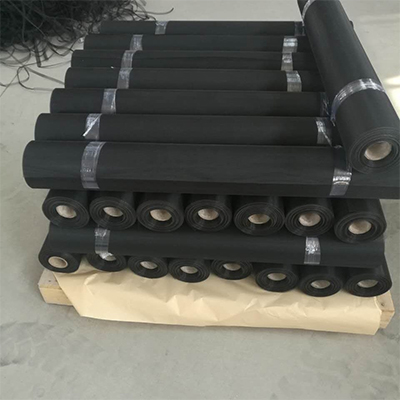

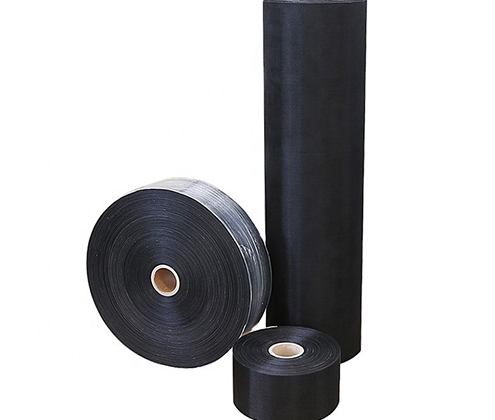

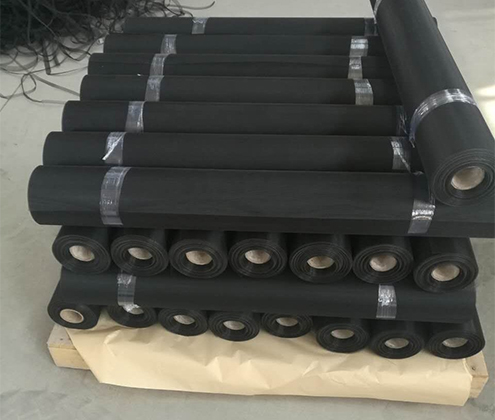

Epoxy Resin Filter Epoxy Resin Filter Packaging
