Metal Mesh Cable Tray

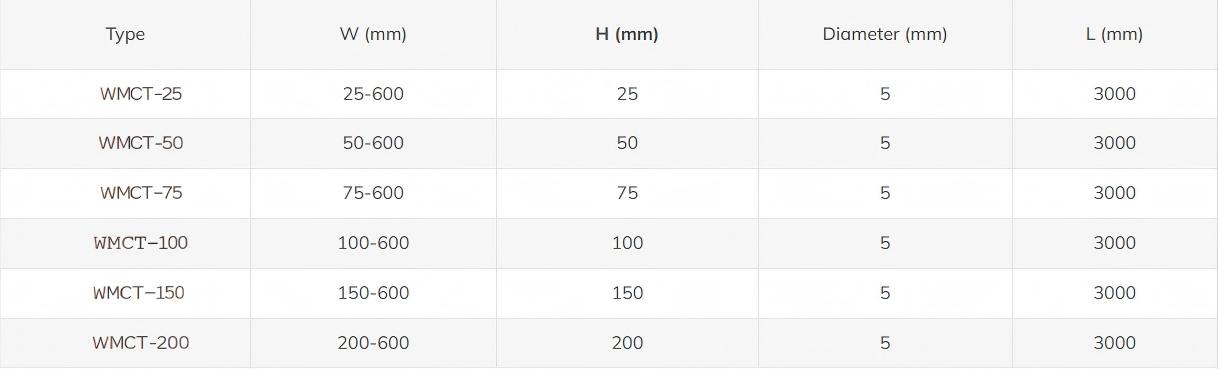

Metal Mesh Cable Tray Specification

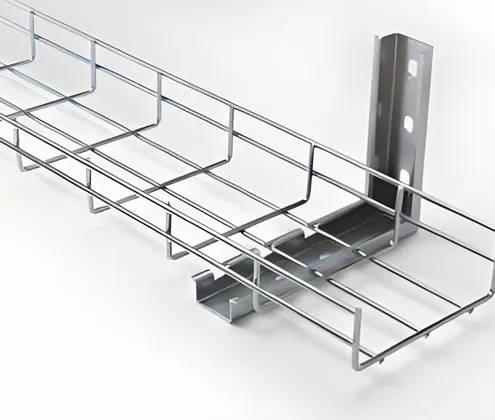

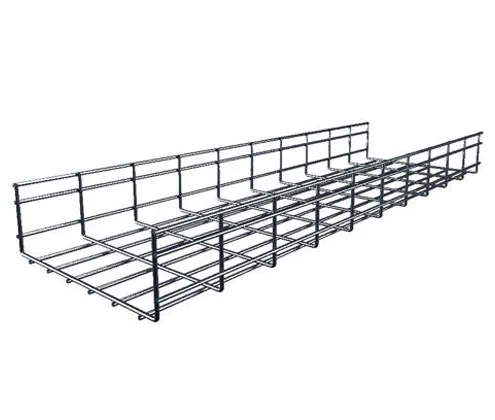

What is a Metal Mesh Cable Tray？

Metal mesh cable trays (also known as cable trays or mesh cable trays) are a revolutionary cable management system. They consist of high-quality metal wire welded into a robust mesh structure, forming an open, lightweight, and load-bearing cable support channel.

Compared to traditional enclosed trough-type cable trays, metal mesh cable trays offer unparalleled advantages due to their unique open design:

1. Ultimate Ventilation and Efficient Heat Dissipation: The open mesh allows free airflow, quickly dissipating heat generated by cables during operation, effectively preventing overheating, extending cable life, and improving the stability and security of the entire power system. This is crucial for high-load data centers and server rooms.

2. Unparalleled Flexibility: You can easily add, remove, or rewire cables from any point and at any angle without disassembling the system. This greatly simplifies installation and subsequent maintenance, saving significant time and labor costs.

3. Lightweight & Easy to Install: The streamlined structure and extremely light weight not only reduce the load on the building structure but also make handling, cutting, and installation exceptionally easy, significantly shortening the construction period and reducing overall installation costs.

4. Comprehensive Cable Visibility: All cable layouts are clearly visible, facilitating quick identification, fault location, and daily inspections, making management more efficient.

5. Robust and Durable with High Load-Bearing Capacity: Utilizing resistance spot welding technology, each node is robust and reliable, ensuring overall structural strength and capable of supporting large bundles and large-diameter cables.

Metal Mesh Cable Tray Applications

To adapt to different application environments, budgets, and performance requirements, we offer a comprehensive range of material options:

1. Pre-galvanized Steel Cable Trays

Features: The base material is galvanized before rolling, resulting in a uniform coating and a smooth surface.

Advantages: Cost-effective, provides excellent rust protection.

Ideal Applications: Dry indoor environments, such as office buildings, shopping malls, and light industrial plants. An economical and practical first choice.

2. Hot-dip galvanized steel cable trays

Features: The formed cable trays are immersed in molten zinc to form a thick, highly adhesive coating.

Advantages: Excellent corrosion resistance and rust prevention, long service life.

Ideal Applications: High humidity and highly corrosive environments, such as chemical plants, sewage treatment plants, coastal areas, outdoor installations, and basements.

3. Stainless steel cable trays

Features: Made of high-quality 304 or 316 stainless steel, possessing inherent corrosion resistance.

Advantages: Robust and durable, resistant to extreme chemical corrosion and high-temperature environments, hygienic and easy to clean, extremely long service life.

Ideal Applications: Food and beverage, pharmaceutical, chemical industries, coastal platforms, and other harsh environments with extremely high requirements for hygiene and corrosion resistance.

4. Aluminum Alloy Cable Trays

Features: Made of high-quality aluminum alloy, lightweight.

Advantages: Extremely lightweight (approximately 1/3 the weight of steel), naturally rust- and corrosion-resistant, requiring no additional plating. Excellent electromagnetic shielding and conductivity, modern and aesthetically pleasing appearance.

Ideal Applications: Weight-sensitive applications (such as high-altitude, large-span installations), data centers, communication base stations, and occasions with special electromagnetic shielding requirements.
